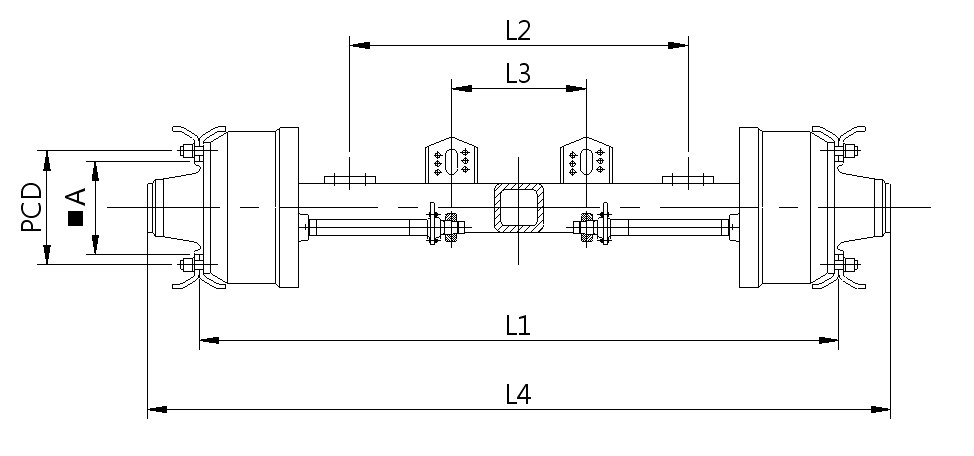

German Type Axle |
|||||||||||||
|
Axle with brake drum |
|||||||||||||
|
Model |
Capacity |
Brake |
Axle Beam |
Track |
Bearing |
Leaf Spring |
Brake |
Stud |
P.C.D. |
H |
Total Length |
Weight |
Wheel Appliable |
|
WKD1001NF |
10 |
S420×180 |
Ø127 |
2050 |
33118 33213 |
≥1200 |
655 |
10-M22×1.5 ISO |
335 |
281 |
≈2390 |
≈363 |
7.50V-20 |
|
WKD1002NF |
10 |
S420×180 |
Ø127 |
2050 |
33118 33213 |
≥1200 |
655 |
10-M22×1.5 ISO |
335 |
281 |
≈2390 |
≈363 |
7.50V-20 |
|
WKD1003NFB |
10 |
S420×180 |
Ø127 |
2050 |
33118 33213 |
≥1200 |
655 |
10-M22×1.5 ISO |
335 |
281 |
≈2390 |
≈363 |
7.50V-20 |
|
WKD1005NF |
10 |
S420×180 |
Ø120 |
2060 |
33118 33213 |
≥1200 |
415 |
10-M22×1.5 ISO |
335 |
281 |
≈2380 |
≈371 |
7.50V-20 |
|
WKD1201NF |
12 |
S420×180 |
Ø150 |
1840 |
33118 33213 |
≥980 |
421 |
10-M22×1.5 ISO |
335 |
281 |
≈2160 |
≈373 |
7.50V-20 |
|
WKD1202NF |
12 |
S420×200 |
Ø150 |
1840 |
33118 33213 |
≥980 |
421 |
10-M22×1.5 ISO |
335 |
281 |
≈2160 |
≈397 |
7.50V-20 |
|
WKD1206NF |
12 |
S420×200 |
Ø150 |
1870 |
33118 33213 |
≥980 |
385 |
10-M22×1.5 ISO |
335 |
281 |
≈2190 |
≈384 |
7.50V-20 |
|
WKD1401NF |
14 |
S420×200 |
Ø150 |
1840 |
32219 33215 |
≥900 |
427 |
10-M22×1.5 ISO |
335 |
281 |
≈2190 |
≈417 |
8.00V-20 |
|
WKD1601NF |
16 |
S420×200 |
Ø150 |
1840 |
32222 32314 |
≥900 |
243 |
10-M22×1.5 ISO |
335 |
281 |
≈2250 |
≈474 |
8.50V-20 |
|
WKD1602NF |
16 |
S420×200 |
Ø150 |
2120 |
32222 32314 |
≥1150 |
640 |
10-M22×1.5 ISO |
335 |
281 |
≈2515 |
≈481 |
8.50V-20 |
|
WKD1801NF |
18 |
S420×220 |
Ø150 |
1840 |
32222 32314 |
≥900 |
262 |
10-M22×1.5 ISO |
335 |
281 |
≈2245 |
≈469 |
8.50V-20 |
|
WKD1801NF2 |
18 |
S420×220 |
Ø150 |
1870 |
32314 32222 |
≥900 |
299.6 |
10-M22×1.5 ISO |
335 |
281 |
≈2288 |
≈474 |
8.50V-20 |
